Raasm ART. 36094 Pneumatic pumps for oil

Raasm ART. 36094 Pneumatic pumps for oil

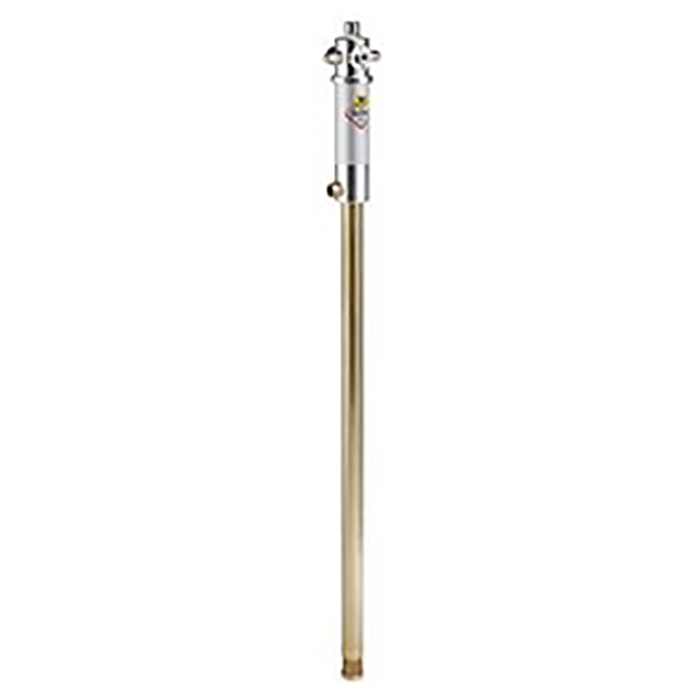

Pneumatic piston pump s. 650 for distributing oil and similar, R 5:1 - 18 I/min with NBR seals and suction tube 940 mm for 180-220 kg drums

Features
Flow rate    (I/min): 18
Ratio:     5:1
Compatible fluids: oils, lubricants and similar
Suction tube upper body: aluminum
Suction tube: carbon steel
Air inlet connection:     G 1/4" (f)
Fluid outlet connection: G 1/2" (I)
Air working pressure(bar): 6 - 8
Average air consumption(I/min): 350
Noise level(dB): 81
max deliverable oil viscosity(SAE): 240
Bung adaptor
Suitable for drums or tanks : suitable for drums 180÷220kg
Packing(No – m3): 1 — 0,02
Weight(kg): 6,8
Dimensions (A-B-C)(CM):  34,5 — 94 — 4,2
