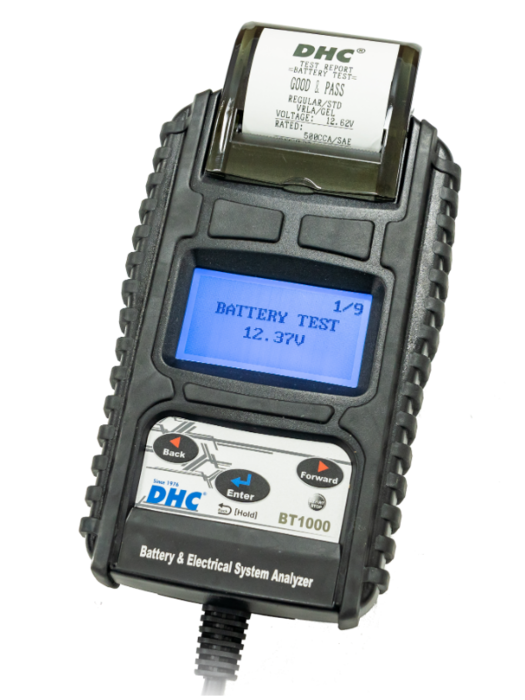

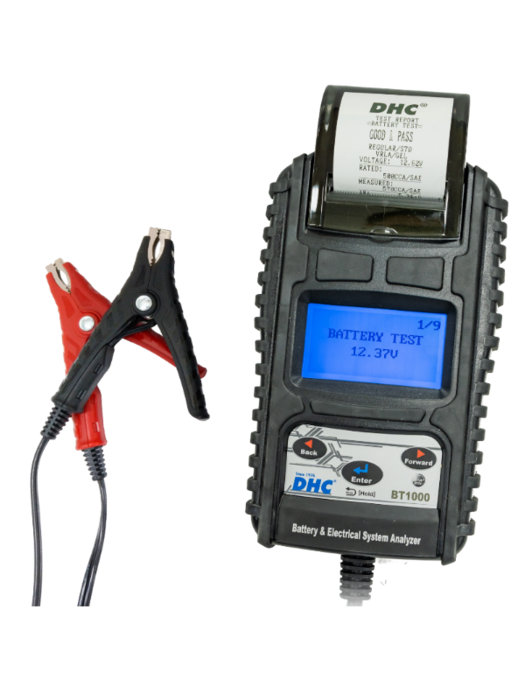

DHC BT1000 Battery & Electrical System Tester

DHC BT1000 Battery & Electrical System Tester

Features:
- Battery, Cranking, & Charging system tester
    6V & 12V battery / 12V START-STOP battery test / 12V & 24V cranking/charging system test / IR test
- 4 Color LCD
    Shows different color for different test result.
- Built-in 2” Thermal Printer
    Prints a receipt of test result with date.
- Start/Stop Battery Test Available
    Performs accurate test for Start/Stop batteries.
- In Vehicle Test
    Combines battery test & system test into a single task, providing a print out with a complete test result.
- Temperature Compensation
    Different temperature compensation above/below 0ºC (32ºF).
- DIY Information
    Able to edit the customized information on the printout receipt.
- Detachable Cable
    Detachable cable for easy replacement.
- Heavy Duty Casing
    Strong and durable casing design.
- Test Code
    Test code decoder for decoding and saving test records.
- Print Last Result
    Able to directly print last test result without re-testing
- Backward Function Key
    Selected wrong setting? Hold the enter key and go back to the previous stage

BT1000 Product Specification
Model Number: BT1000
Brand: DHC
Application: 6V & 12V battery / 12V START-STOP battery test
             12V & 24V cranking/charging system test
             IR test
LCD: 4-line & 4-color large LCD with adjustable brightness
Printer: 2” thermal printer
Supported Battery Types: Flooded, VRLA/GEL, AGM Flat, AGM Spiral, EFB
Battery Ratings: CCA/SAE, EN, JIS, DIN, IEC, CA/MCA
Operating Range: 40~2,000 CCA(SAE)
Voltage Range: 1V ~ 31.5V
Dimensions (mm): 250 (L) x 130(W) x 45(H)
Test Code/ Test Counter: Yes
Detachable Cable: Yes
Languages: English, French, Spanish, German, Italian, Portuguese
