AIR QUICK COUPLING
JAPANESE STYLE - REGULAR TYPE (Female thread)
Air Quick Coupler / Quick Disconnect Coupling / Quick Disconnector / Quick Connect / Quick Release Coupler (QRC) / Air Quick Coupling / Air Connectors & fitting / Quick coupling / Pneumatic couplings
|

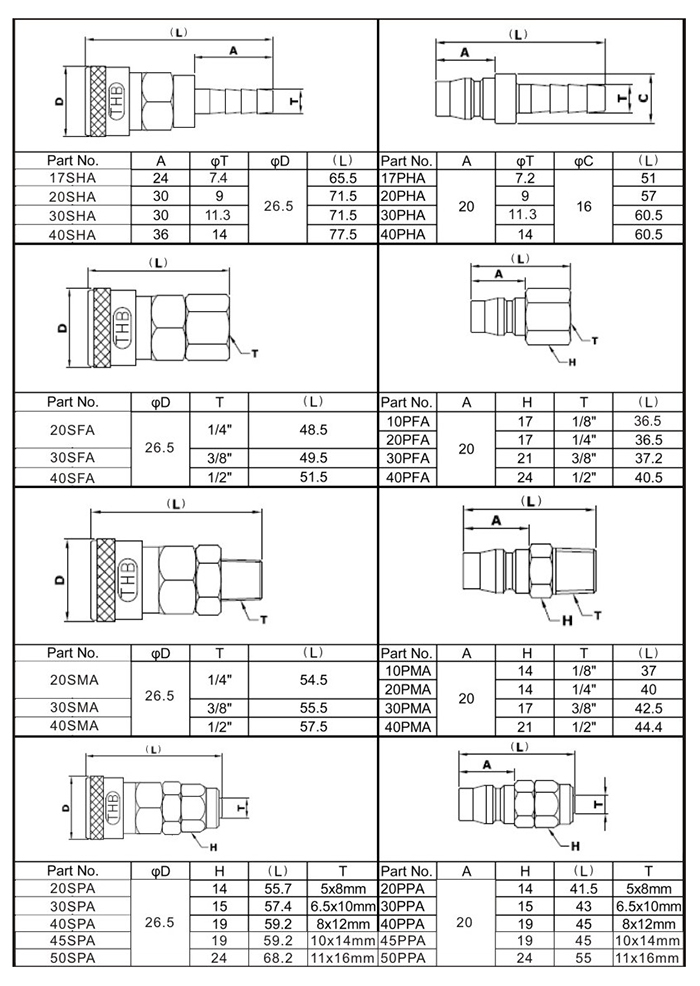

Part No. |
Size |
|
20SFA |
1/4"PT |
|
30SFA |
3/8"PT |
|
40SFA |
1/2"PT |
FEATURES:
1. One-way automatic shut-off valve in the socket.
2. Wide variety provides best choice accordingly to application.
3. Hardened important parts are extremely wear resistant and durable.
4. Tested 100,000 times, coupler connection is accurate and reliable.
APPLICATION:
1. Pneumatic tools
2. Air piping
3. Air pressure equipment
SPECIFICATION:
|
Material |
Stainless |
Steel |
|
Thread |
PT |
|
|
Working Pressure |
218PSI (15Bar/1.5MPa) |
|
|
Maximum Pressure |
290PSI(20Bar/2MPa) |
|
|
Temperature Range |
-20℃ ~ +80℃ |
|
|
Size |
1/4" (20Type) |
|
|
3/8" (30Type) |
||
|
1/2" (40Type) |
||
