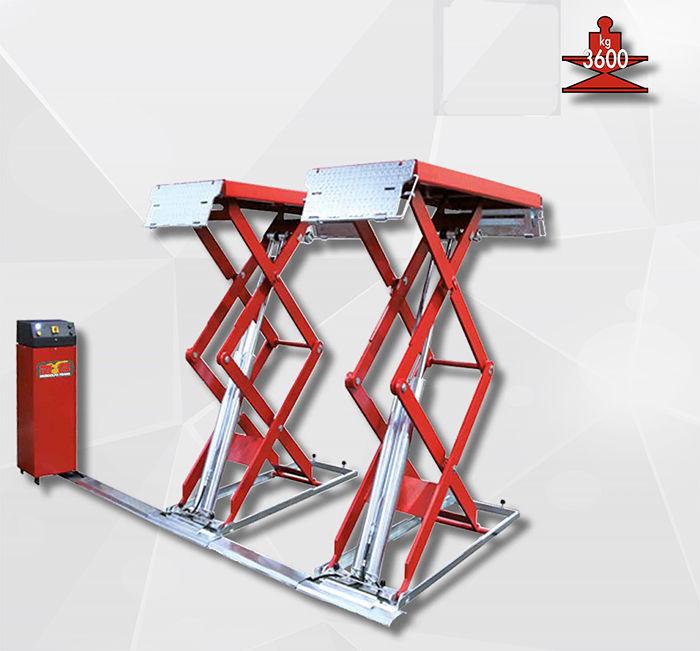

Mondolfo Ferro TITAN XC 3600 EF Lifting equipment C-Line

Mondolfo Ferro TITAN XC 3600 EF Lifting equipment C-Line

- Electrohydraulic underbody double scissors type lift, for tyre specialists, car workshops, and body repairers.

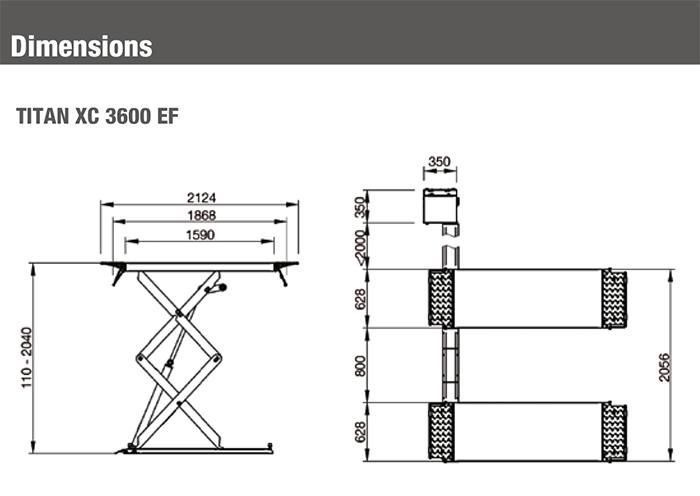

TECHNICAL DATA

- Lift capacity: 3600 kg
- Lifting time: 45 s
- Motor: 400/230V-3kW-3ph-50 Hz
- Lift max. lifting height: 2040 mm
- Lift minimum height: 110 mm

FEATURES

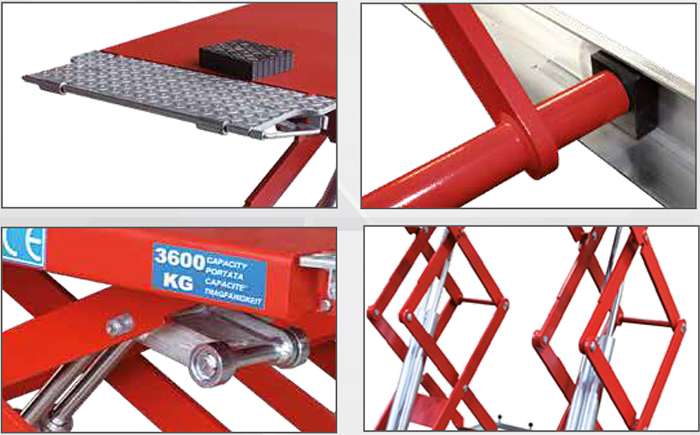

- Electrohydraulic underbody double scissors type lift, for tyre specialists, car workshops, and body repairers. Alignment of the runways with a dual MASTER/SLAVE circuit ( two cylinders per runboard) without mechanical safety racks. Runboards version with extensions or flaps ( F). All models available in both on-floor and flush installation versions.
